Heavy-Duty Intercept Cover

Details

The VAC-U-MAX Model 115 Intercept Cover is designed primarily for abrasive materials with its replaceable impact baffle and heavy-duty dome cover. Collected material impacts the baffle and falls out of the airstream. The cover is intentionally raised above the top of the drum for optimum velocity-drop and maximum collection capacity.

The Model 115 is also highly customizable. Inlet/outlet sizes and styles can be supplied to suit your application from 1.5″ to 4.0″.  It works with 55-gallon steel drums or any VAC-U-MAX intercept hopper with a 22″-diameter opening. Available in both carbon steel and stainless steel construction.

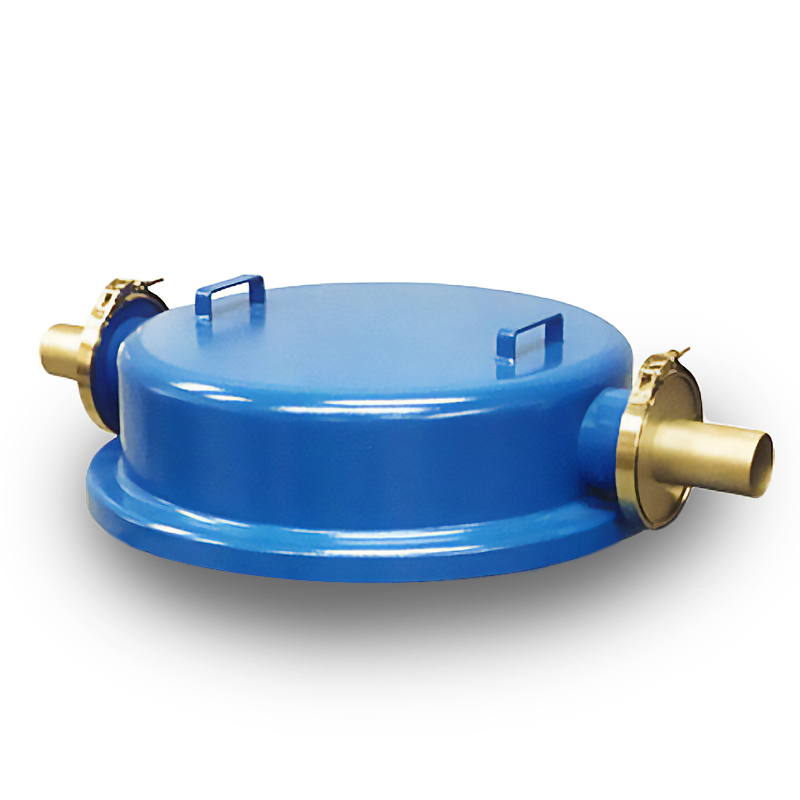

• Shown here in carbon steel with blue powder coat; Stainless steel with bead-blast finish is also available
• Can be utilized with 55-gallon steel drums or any VAC-U-MAX intercept hopper with 22"-diameter opening
• Replaceable Stainless Steel Inlet & Outlet Adaptors
• Internal Impact Baffle Plate with Replaceable Rubber Absorption Flap
• Neoprene Gasket with Grounding Strap
• Lifting Handles for Easy Installation and Removal
• Inlet/outlet sizes and styles can be supplied to suit your application
